April 22, 2014

TOKYO ELECTRON DEVICE announces the release of
LSI TE7740RPF with extended I/O for car navigation systems
and an automotive AEC-Q100 compliant qualification

– Provides flexible and efficient product development using a single chip with integrated I/O functions –

Yokohama, Japan, April 22, 2014 - Tokyo Electron Device Limited (TED) announces the launch of the new LSI TE7740RPF with extended I/O and an automotive AEC-Q100* compliant qualification for in-car ICs. TED began the release of sample products on April 22 under its own brand name “inrevium.”

The high functionalization of car navigation systems in recent years, especially high-end models, means that the number of I/O functions is increasingly insufficient when only the CPU’s built-in I/O functions are used. With LSI TE7740RPF, I/O functions such as SPI (up to 6 MHz CPI clock frequency) and UART (up to 3 Mbps baud rate), which are required for car navigation systems, are integrated into a single chip. This allows for a direct connection with a CPU bus through the 8 bit asynchronous interface and resolves the I/O function insufficiency problem of car navigation systems.

With LSI TE7740RPF, required interface functions and universal I/O ports can be selected using a register setting. It flexibly accommodates customer systems and realizes more efficient product development.

LSI TE7740RPF is automotive AEC-Q100 qualification compliant and meets strict in-car quality requirements. It is suitable for in-car infotainment devices such as car navigation systems.

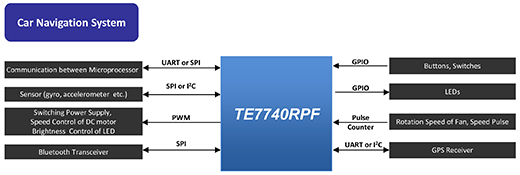

Example of a car navigation system component

Example of a car navigation system component

TED has been providing extended I/O LSIs with various I/O functions since the 1990s. The LSIs are installed in various devices, such as MFPs, projectors and terminal devices. TED offers a wide lineup of products to match various applications. It plans to expand its lineup of these long-term stable I/O products.

* AEC-Q100
A standard for reliability tests for in-car electronic parts and ICs established by the Automotive Electronics Council

[TE7740RPF features]

- Automotive AEC-Q100-compliant qualification for high reliability
- Realizes effective product development with a single integrated I/O function chip
- Long-term stable I/O supply

[TE7740RPF product photo]

[TE7740RPF main functions]
- I/Os
   • Universal I/O port (GPIO): 36
   • Asynchronous serial (UART): 5ch (1ch with flow capability)
   • Synchronous serial (SPI): 4ch
   • PWM: 2ch
   • Pulse counter: 2ch
   • I2C (Master): 2ch
- CPU I/F: 8bit asynchronous bus I/F
- External input clock: max. 48 MHz
- Operation temperature: -40°C to +85°C
- Power source/voltage: core 1.8V, I/O 3.3V
- Package: 81pin PFBGA (with 0.8 mm ball pitch), size: 8 mm × 8 mm
- Automotive AEC-Q100-compliant qualification for in-car product quality


Sample products from April 22, 2014
Mass-produced products from July 2014

* Company names and product names that appear in this news release are registered trademarks or trademarks of their respective companies.
